Question 1

To prepare for a new Nutanix installation, a consultant downloads the Foundation VM, imports the VM to

their Desktop Virtualization Solution, and powers on the VM. The IPv4 static address on the host workstation

and the Foundation VM have been configured, but pings between them fail.

Which two troubleshooting steps should the consultant perform? (Choose two.)

Options :

A : Remove and re-import the Foundation VM to ensure the virtual NIC is set to Host-Only.

B :

Verify the virtual NIC in the Foundation VM is bound to the correct physical Host adapter.

C :

Confirm the IP addresses and subnet masks are correct.

D : Verify the virtual NIC in the Foundation VM is bound to the correct wireless network adapter.

Answer: A,C

Question 2

A customer has a G6 AHV cluster with 4x10GbE NICs on each node and the following configuration: * Networking is set to default * Only two NICs are connected The customer receives the following critical message: The NIC is disconnected from the switch, or the switchport is failing. What should the consultant verify to resolve the issue?

Options :

A : The NICs are configured for active-backup.

B : The VLANs are configured correctly on the switch or tagged on the cluster.

C : The other two 10GbE connections are removed from the default bond.

D : The NICs are connected for balance-slb.

Answer: A

Question 3

Anadministrator is notified that a bare metal database server is down. This database server is being served storage using a Nutanix Volume Group. Upon investigating, the administrator finds that the disks in the database server that map to the vDisks in thevolume group have gone offline. What is causing this issue?

Options :

A : The Volume Group Load Balancer has been disabled.

B : Port 9443 is blocked in the server firewall.

C : Port 3260 has been blocked in the server firewall.

D : A CVM serving the Volume Group has gone offline.

Answer: D

Question 4

Anadministrator recently added VLAN 205 CRM in Prism Element. The workloads attached to the associated NICs are unable to establish network connectivity. Which Layer 2 protocol allows the administrator to troubleshoot this issue from Prism Element?

Options :

A : HDLC

B : SUP

C : LACP

D : LLDP

Answer: D

Question 5

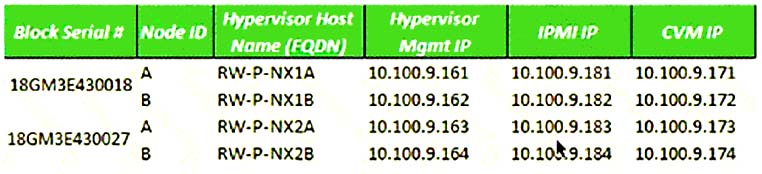

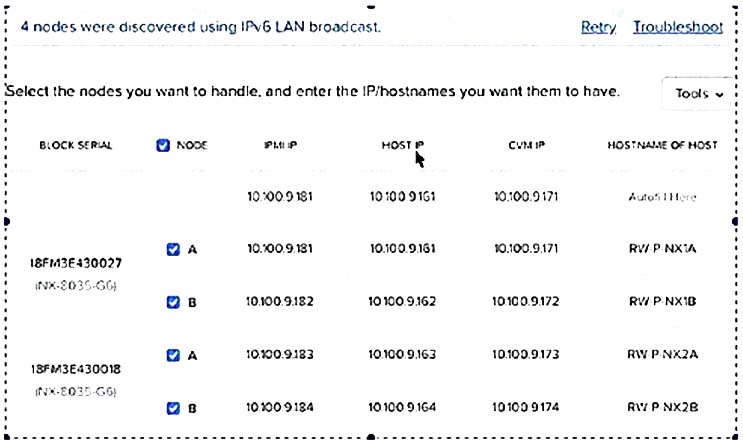

Refer to the exhibit.

A system administrator is using Range-Autofill tool to assign IP addresses to setup a multi-block cluster based

on the following configuration:

Which additional changes must be made during the Foundation process to configure the cluster correctly?

Options :

A : Change host names

B : Reorder block serial

C : Change IP address

D : Reorder blocks

Answer: A
